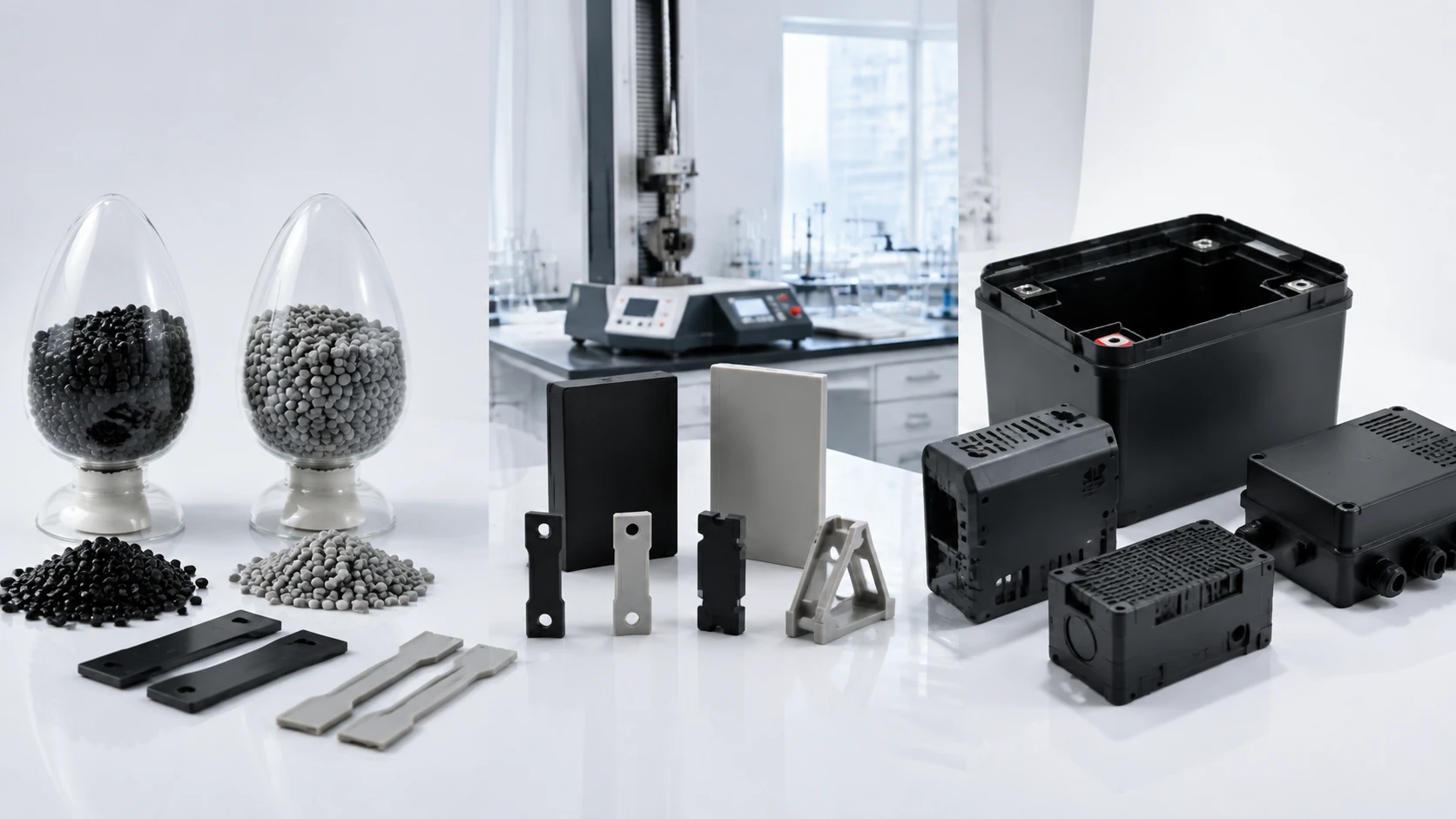

Engineering Plastic Compound
Flame Retardant ABS (FR-ABS)
UL94 V-0 flame retardant ABS compounds engineered for electrical, electronics and industrial applications requiring a balance of fire safety, impact strength and reliable injection molding performance.
UL94 V-0 @ 1.5 mm
Halogen-Free Options
High Impact
Stable Injection Molding
Custom Color & Formulation

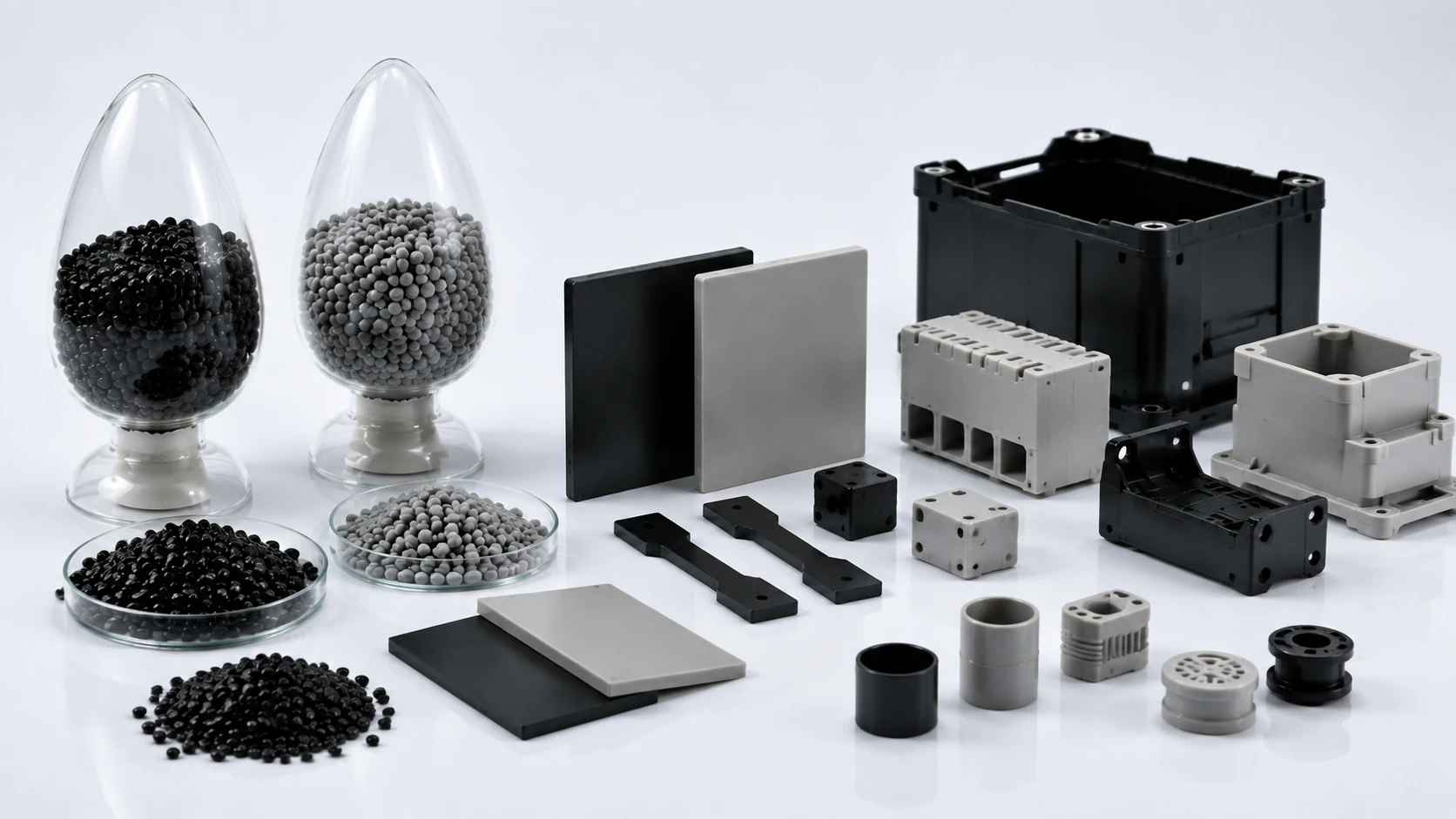

Material Positioning
Why Flame Retardant ABS?
Standard ABS is widely used because it provides practical processing behavior, good surface quality and useful impact performance for injection-molded parts.
Electrical, electronics and energy applications may require improved flame resistance. FR ABS combines ABS processing characteristics with flame-retardant performance for molded housings and technical components.
YicaiPlas supports project-specific review for flame rating targets, processing needs, color requirements and application conditions.
Typical Values
Technical Specifications
The following values reflect current page data and should be treated as typical reference ranges. Final values depend on grade, color and project validation.
Flame RatingUL94 V-0 @ 1.5 mm
LOI28-32%
GWIT775°C
GWFI960°C
Tensile40-50 MPa
Impact15-25 kJ/m²
Density1.05-1.08 g/cm³
HDT (1.82MPa)70-80°C
Performance Balance
Key Performance Advantages
01
Flame Retardancy
UL94 V-0 performance for demanding electrical applications.
02
Mechanical Balance
Designed to retain useful impact and mechanical performance after flame-retardant modification.
03
Processing & Surface
Stable injection molding behavior with good surface appearance.
04
Customization
Flame-retardant level, flow, color and application requirements can be evaluated for project-specific development.
Process Evidence
Manufacturing & Quality Control
Flame retardant ABS projects are reviewed through formulation, compounding, pelletizing and performance verification workflows.
02
Pelletizing
Stable extrusion, cooling and pelletizing process.
03
Performance Verification
Mechanical/property testing and quality verification.
Applications

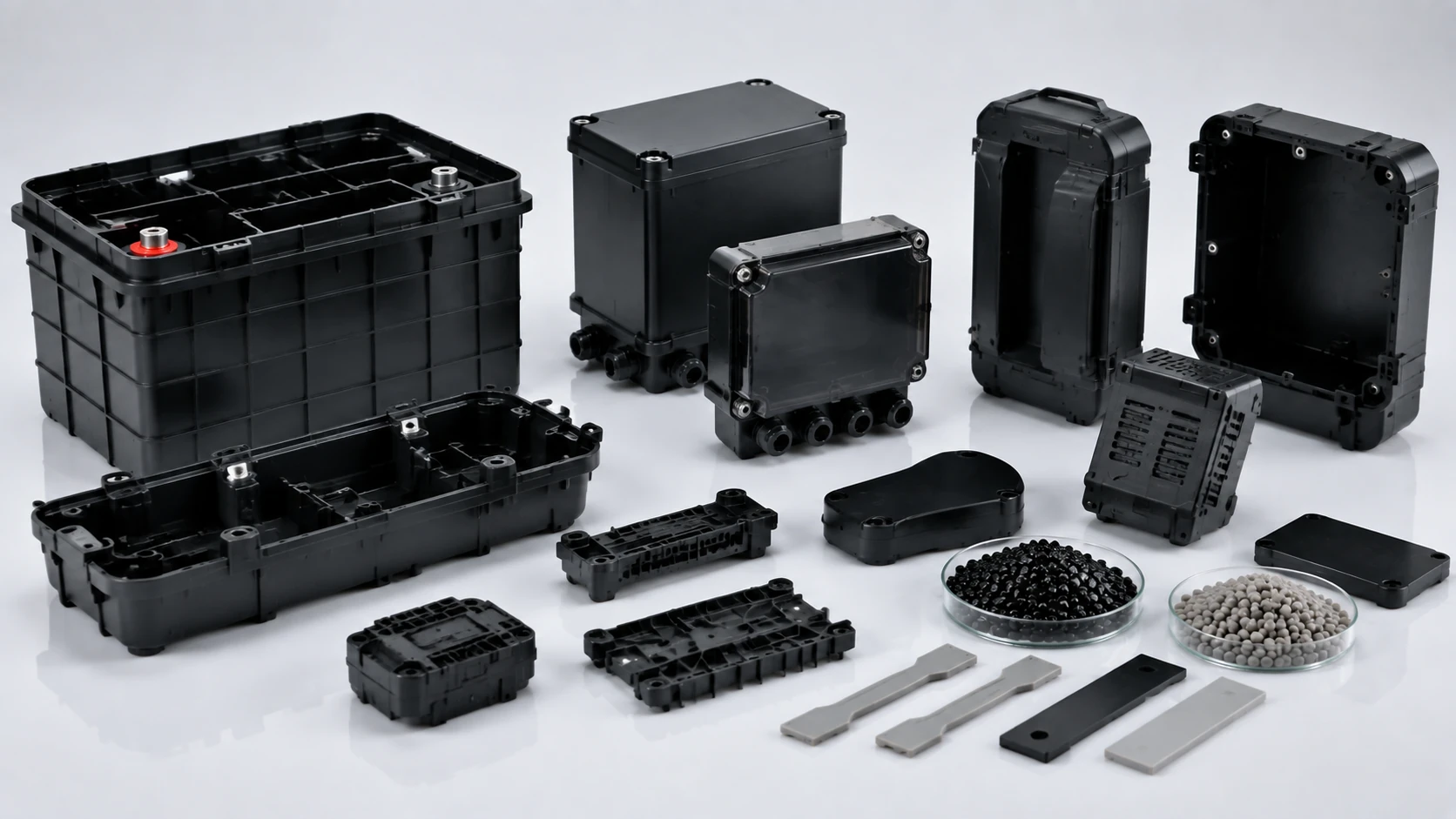

Electrical & Energy Applications
- Battery and UPS housings
- Electrical enclosures
- Switch and socket housings
- Appliance control panels
- LED lighting components
- Industrial electronics housings
Grade Direction
Available Grades
Grade families are selected based on target flame rating, wall thickness, processing behavior and application requirements.
| Grade | Flame Rating | Key Characteristic | Typical Application |
|---|---|---|---|
| YC-FR-ABS-V0 | UL94 V-0 @ 1.5 mm | General-purpose flame retardant ABS balance. | Electrical housings and molded industrial parts. |
| YC-FR-ABS-V0-HF | UL94 V-0 @ 1.5 mm | Halogen-free direction for RoHS-oriented projects. | Electrical and electronics housings requiring halogen-free evaluation. |
| YC-FR-ABS-V1 | UL94 V-1 @ 0.8 mm | Thin-wall processing direction based on project validation. | Compact switch, socket and electronics components. |
| YC-FR-ABS-HT | Project-dependent | Heat-resistant direction based on existing HDT 85°C grade concept. | Applications requiring higher thermal performance review. |
Project Development

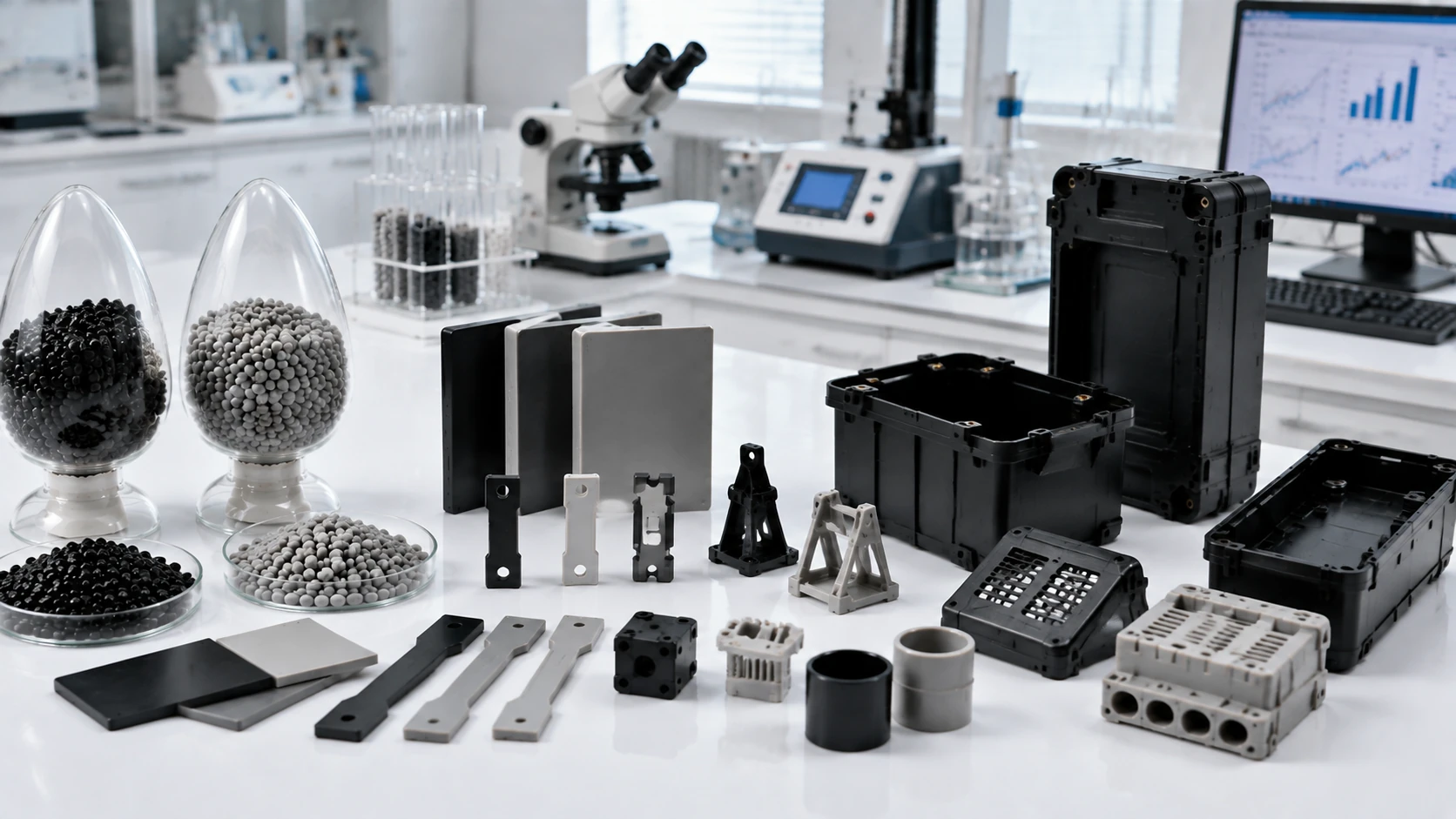

Custom Flame Retardant ABS Development
For new electrical or electronics projects, YicaiPlas can evaluate flame-retardant requirements, flow and processing adjustment, impact-performance balance, custom color matching and application-specific formulation direction.
Certification and final performance must be reviewed by grade, part design, thickness and testing conditions.
Discuss Your Requirements
Need a Flame Retardant ABS Grade for Your Application?
Share your application, flame rating requirement, color, processing method, target properties and annual or trial volume. Our team will review the appropriate grade direction and documentation needs.
